Mobile 10m Self Propelled Scissor Lift with 450kg load capacity

Product Categories
Hunan Jesh Heavy Industry Co.,Ltd
Contact Now

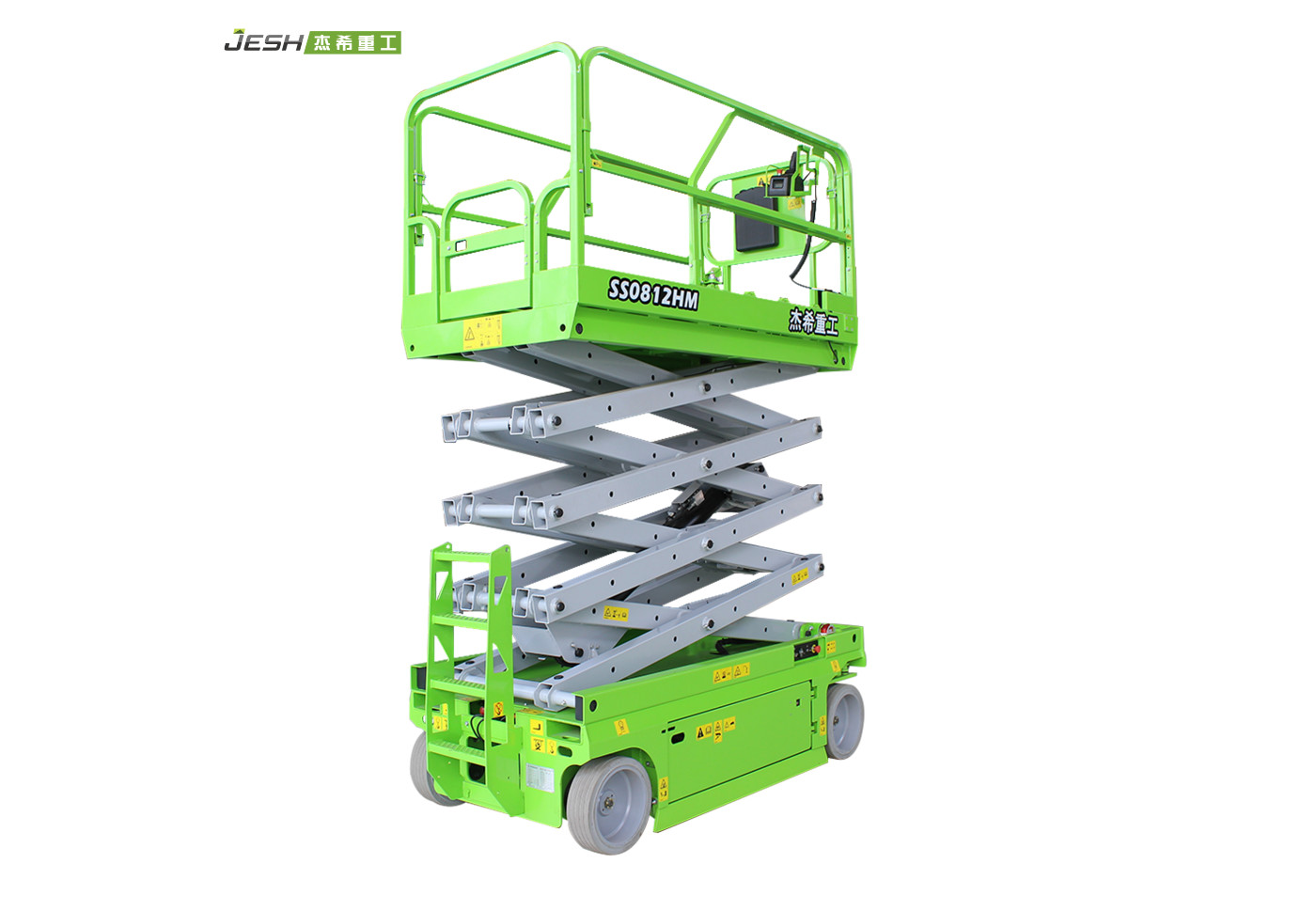

Mobile 10m Self Propelled Scissor Lift with 450kg load capacity

Brand Name : JESH

Model Number : HMserials

Certification : CE/ISO

Place of Origin : CHINA

MOQ : 1 Unit

Payment Terms : Negotiation

Supply Ability : 4000 Units per month

Delivery Time : 45days

Packaging Details : Regular factory packing

Price : $9000-$10,000

Model : SS0812HM

Platform Height : 2.28m

Platform Width : 1.12m

Platform Capacity : 450kg

Tire Size : 40.5*12.7m

Weight : 2550kg

Raise : 32/sec

capacity on extension : 120kg

Battery Voltage : 24V/260Ah

Overall Dimensions : 2.48x1.14x2.35m height lift to 8.1m

Table Size : 3.19x1.14x1.24m

Engine : Optional( Perkins,Koher,Deutz,Commins,Yanmar)

Contact Now

Mobile 10m Self Propelled Scissor Lift with 450kg load capacity

FEATURES:
1) Unique design of bidirectional retracting scissor arm providing better stability and comfort of machine.
2) Highly stable - can operate on 3 degree longitudinal and 1.5 degree lateral slope
3) Super low maintenance self-lubricating bearings in some components
4) Platform can be dismantled for transportation

Technical Parameters

Model SS0812HM self propelled Scissor lift
Dimentions Metric
Working Height 10.1m
Platform Height 8.1m
Platform Length 2.27m
Platform Length-Extended 3.17m
Platform Extension 0.9m
Platform Width 1.14m
Height -Unfolded 2.35m
Height-folded 1.82m
Wheelbase 1.87m
Min. Ground Clearance-stowed 10cm
Min. Ground Clearance-Raised 2cm
Productivity
Platform capacity 450kg
Extension platform capacity 120kg
Drive Speed 3.5km/h
Gradeability 25%
Raise/Lower Speed 32/42sec
Turning Radius(Inside/outside) 0/2.1m
Tire 40.5x12.7cm
Power Electric
Engine Hydraulic motor
Hydraulic Oil Tank Capacity 25L
Machine Total Weight 2550kg
Battery 24V/260Ah

Mobile 10m Self Propelled Scissor Lift with 450kg load capacity

Our Warranty & Services

Warranty:2 years for the whole machine.5 years for the main structural,

Services:Engineers door to door service if with bulk orders, Also We can provide you online support.

Company Information

Hunan JESH Heavy Industry Co.,Ltd. is professional manufacturer of MEWPs(Mobile Elevating Work Platforms) where is heavy machinery manufacturing base and JESH is specialized in R&D,production,sales and after sales service of MEWPs as main products includes self-propelled scissor lift,self-propelled telescopic boom lift,self-propelled articulating boom lift and other products which covers working height from 4M to 46M.

JESH owns two main production bases, they are trial production workshop in Changsha and mass production workshop in Tianjin, with production capacity of over 2000 units MEWPs per months.​

Mobile 10m Self Propelled Scissor Lift with 450kg load capacity
